Alternative Method of Calculating the Cross Product

Alternative Method of Calculating the Cross Product — Continued

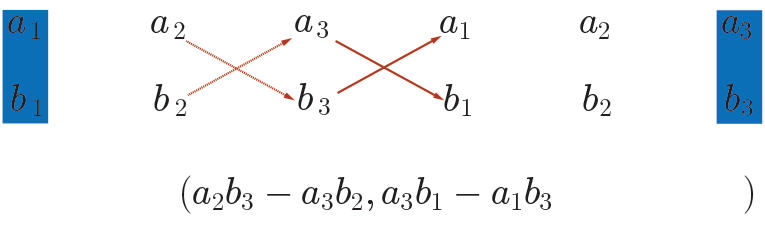

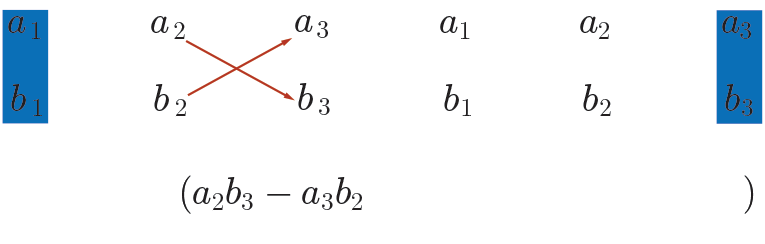

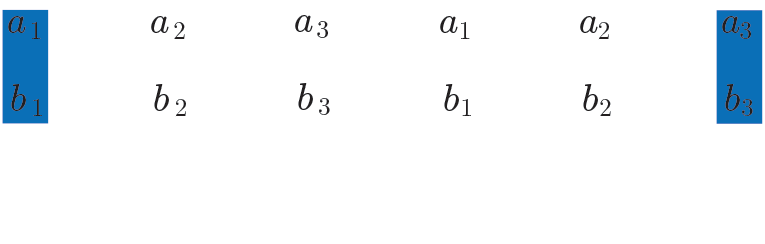

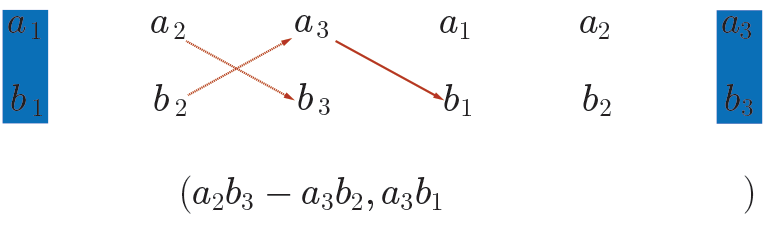

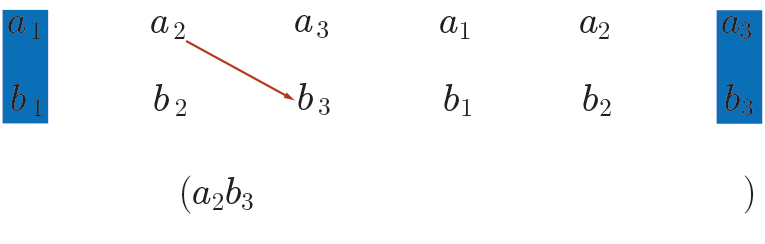

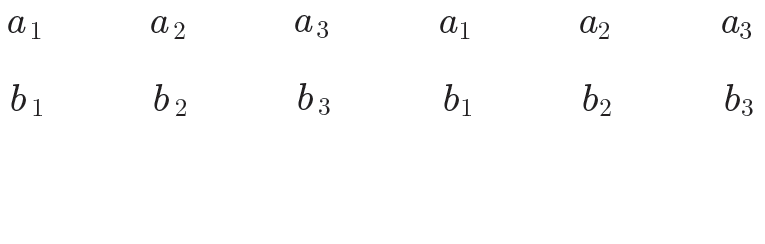

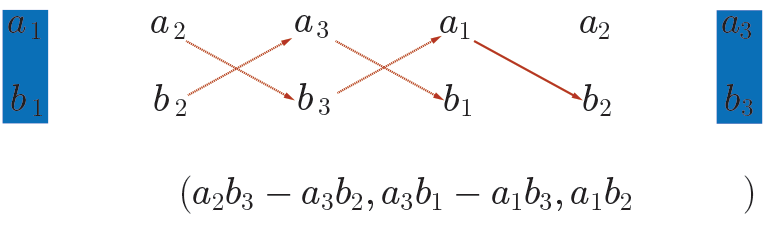

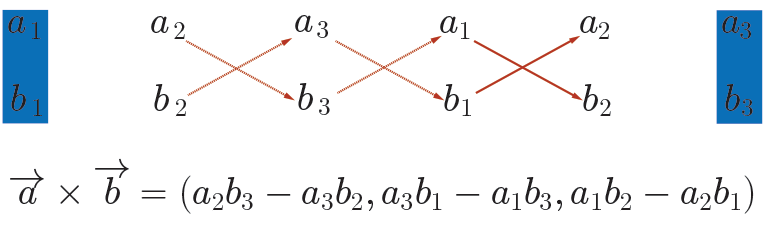

The steps to complete the alternate method of finding the cross product.

Example 2

Check Your Understanding A

Use the cross product to find a non-zero vector orthogonal (perpendicular) to the following pair of vectors:

(a)*1.0 , (a)*2.0 , (a)*3.0 and (b)*1.0 , (b)*2.0 , (b)*3.0



Enter the vector entries separated by commas, e.g. 1, 3,-1 (notice that brackets are provided). Be sure to check your answer using the dot product.

 (  There appears to be a syntax error in the question bank involving the question field of this question. The following error message may help correct the problem:

null

Preview  )

Given general vectors a=a1,a2,a3and b=b1,b2,b3, the cross product is calculated as follows:

ab=a1,a2,a3b1,b2,b3=(a2b3a3b2,a3b1a1b3,a1b2a2b1)

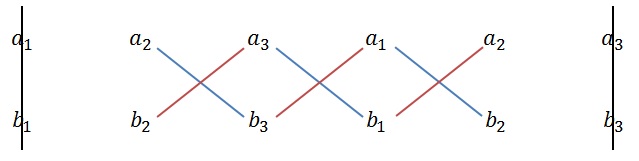

A trick to remember the cross-product formula is to use the following diagram. Setting it up is as simple as writing the components of each vector twice in two horizontal rows. We then ignore the far left and far right columns and draw diagonal lines between the components. Each pair of diagonals (forming an X) represents a component of the cross product.
